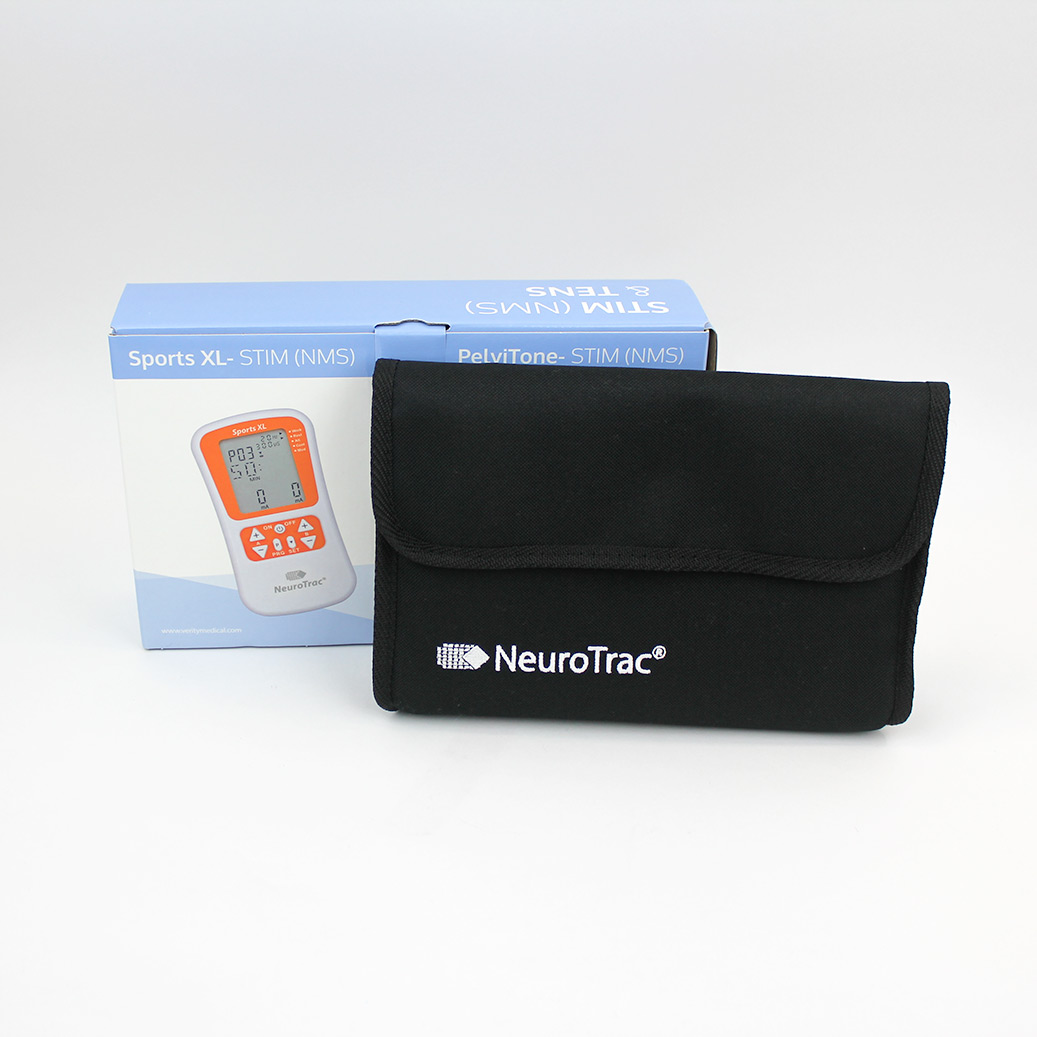

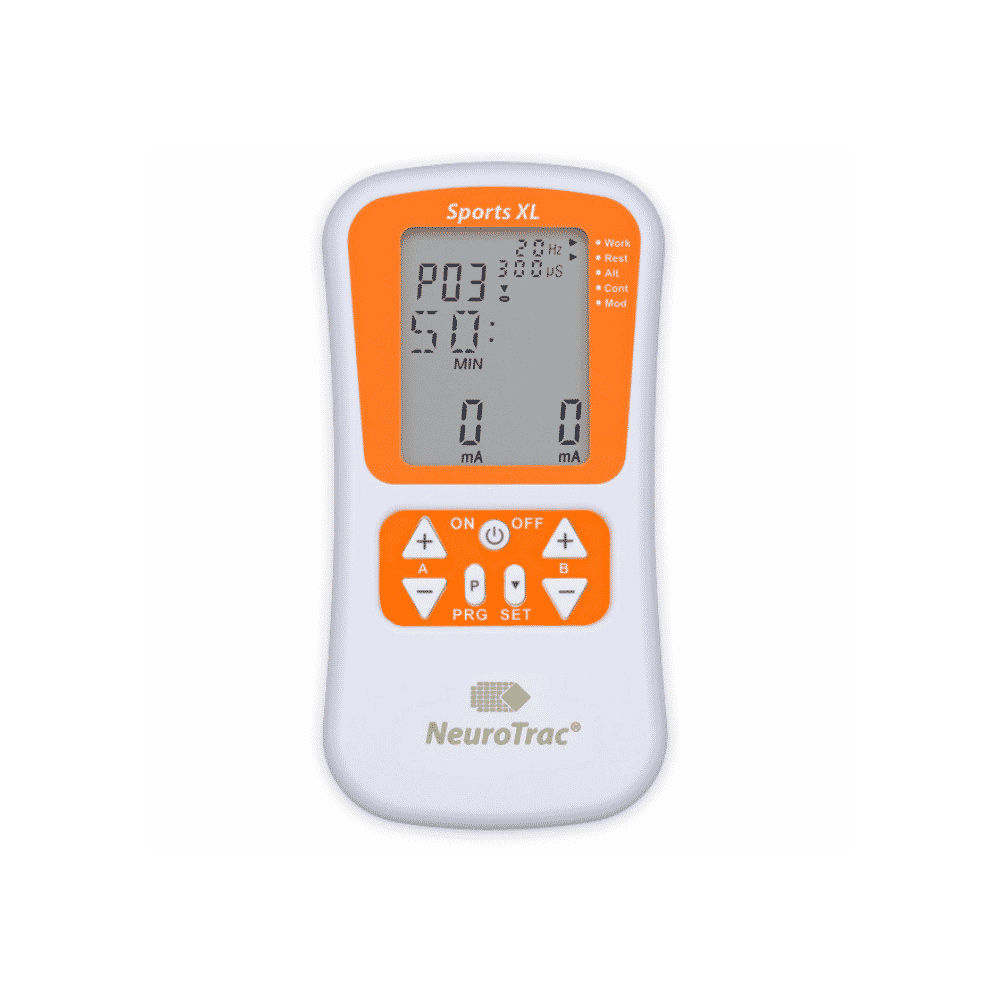

NeuroTrac® Sports XL NMES
Dual channel Sports XL device has all the features of Sports device, plus:
Stronger symmetrical stimulation, with the reduced Pulse Width: 50 – 330 μS.
2 lead wires for each channel giving a total of 8 electrode positions.
21 Pre-set Sports’s programmes and 3 Customizable programmes.
Advanced multi-phase programmes where treatment is split into time phases with different stimulation parameters.
Dual channel: individually isolated circuits.
Amplitude: 0-90 mA into 500 Ohm load; actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 86 mA, at 1500 Ohms load the maximum will be limited to 65 mA.
Type: Constant current, maximum output voltage 180 Volts +10 / -30 Volts
Waveform: Symmetrical, rectangular bi-phasic with zero DC current.
Selectable pulse width: 50 μS – 330 μS [2% accuracy].
Pulse Rate selection: in the continuous mode 2 – 100 Hz [2% accuracy].
Time duration of the treatment selectable: 1 minute to 90 minutes.
Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.
Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.
Ramp up time 0.1 – 9.9 seconds.
If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.
Physical dimensions: 134 x 69 x 29.7 mm.
Weight: 0.18 KG with battery.
Environmental Conditions for use:
+5 to +40 degrees Centigrade. 15-93% Humidity.
Environmental conditions for storage & transport:
-25 to +70 degrees Centigrade. 15-93% Humidity.
Warranty: NeuroTrac Sport 2 Channel has a one year warranty, valid from the date of purchase. The warranty is valid on the unit only, and does not include accessories.
