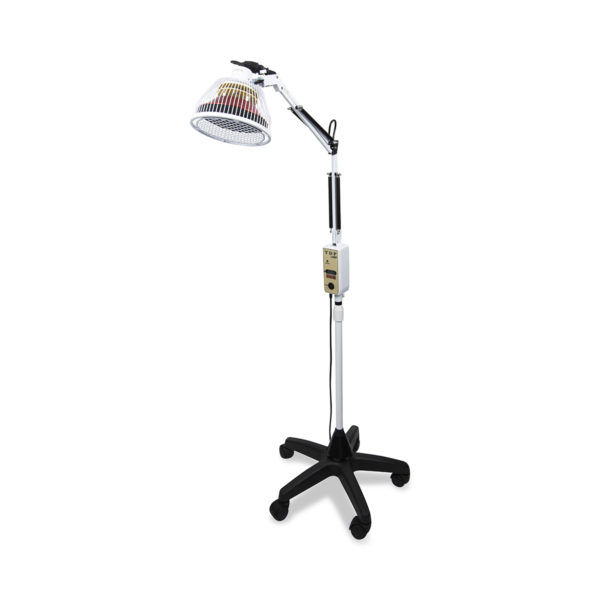

TDP CQ-36 Digital Heat Lamp (Large Head)


In stock


In stock

Note: Our CQ-36 lamps are the new versions that feature a detachable head. This new feature allows for quick repairs should the heating mechanism fail over time.

For those of new to Far Infra Red lamps, these lamps are different from conventional infrared lamps and microwave therapeutic devices.

It features a round plate coated with a proprietary mineral formulation consisting of 33 elements essential to the human body. When activated by a built-in electric heating element, this mineral plate emits a special band of electromagnetic waves ranging from 2 to 25 microns at an intensity that coincides with the wavelengths and intensity of the electromagnetic waves released by a human body, and are consequently absorbed by the body. This selective absorption of electromagnetic energy has been found to yield therapeutic effects on the human body.

Features include:

  • 4-digit Liquid Crystal Display: 5~95 Min in 5-min. steps
  • Push Button Timer Panel Control

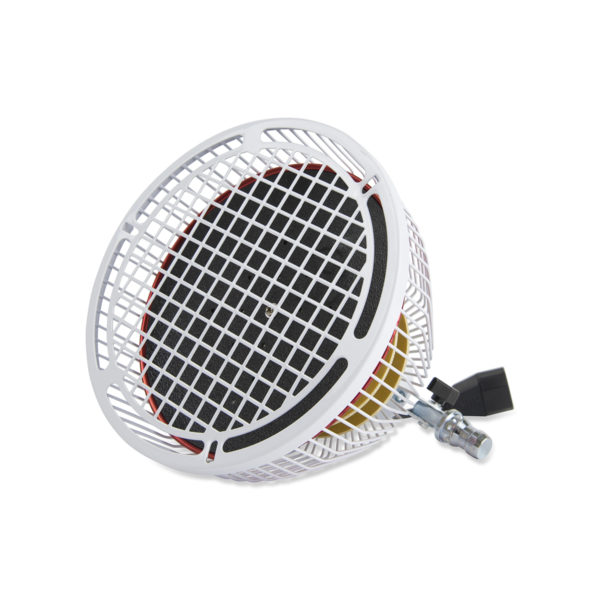

  • Detachable head – simply unplug the cord that connects the head and main frame when replacing

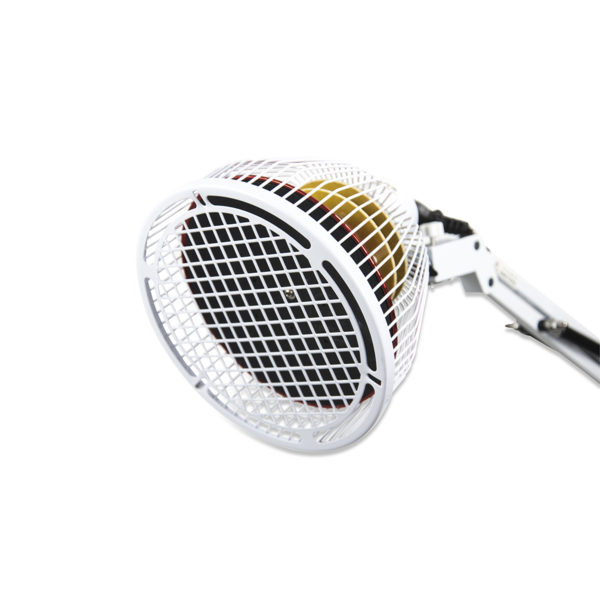

  • Mineral Formation emission plate is larger in diameter (for greater coverage)
  • More Minerals on the Plate (With 33 Minerals)

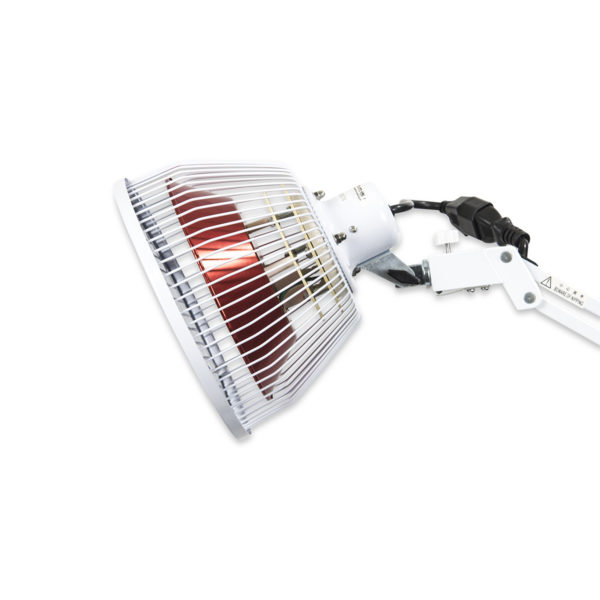

  • Wide Dispersion Angle Head Configuration
  • Long-life Mineral Formation Plate. (Up to 2000 Hrs)
  • Faster Preheating Time

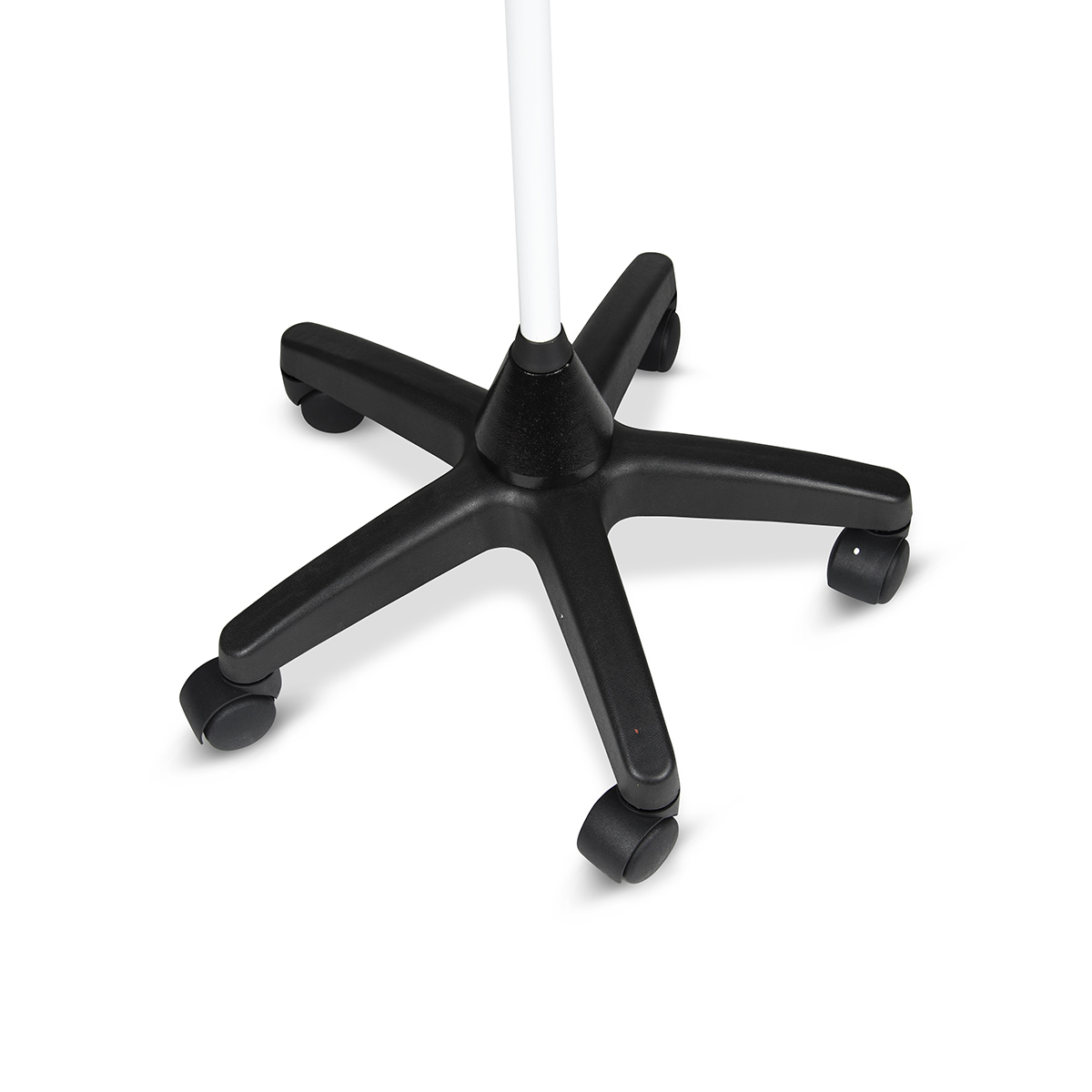

  • Durable base with casters

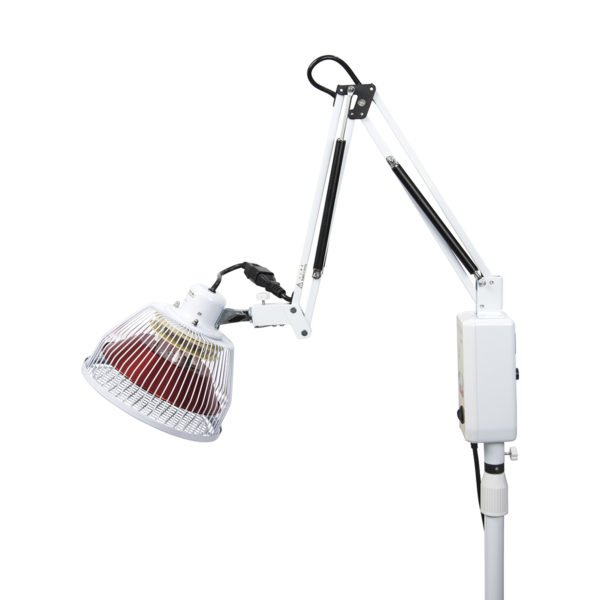

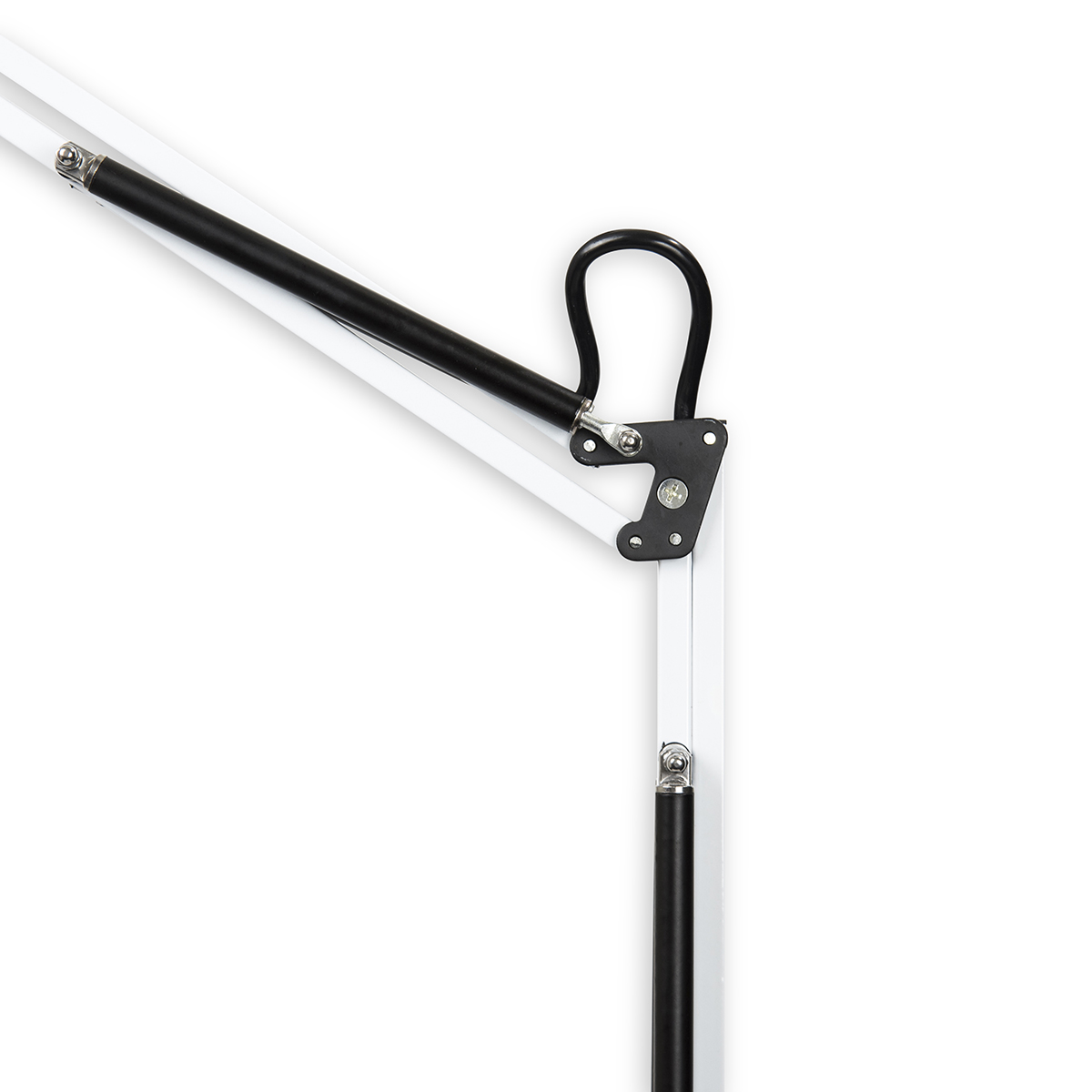

  • Arm System is Designed with 4 Vacuum Arm Supports
  • Can be adjusted to any position
  • Start and pause button. Reset button for time reset
  • Main Switch Power ON/OFF

Technical Specifications:

  • Spectrum Range:  2 ~ 25 Microns
  • Power Supply: 110V
  • Power Consumption: <= 250W
  • Dimensions After Assembly: Minimum height with arm bent down: 50″ / 127 cm, fully extended height with arm straight up: 70″ / 179 cm, Head diameter: 7.5″ / 19 cm, base span: 20″ / 50 cm
  • Azimuth (Head Rotation): 360°
  • Lifetime of Mineral Plate: 1500 ~ 2000 hours
  • Diameter of Mineral Plate: 6.6″ / 17 cm
  • Auto-Timer: four-digit LCD indicator, 0-60 mins
  • Gross Weight: 28.6 lbs / 13 kg

Warranty: 1-year warranty on parts (excluding ceramic heater) and labour (practitioner must cover shipping costs to return item if there is a warranty issue). Warranty does not extend to wear and tear issues.

FREE SHIPPING INCLUDED: This item includes free standard shipping within Canada via Canada Post.

Product may vary slightly from image on website.

SKU: TDP500 Categories: ,
Weight 12.4000 kg
Dimensions 610 × 480 × 250 mm
