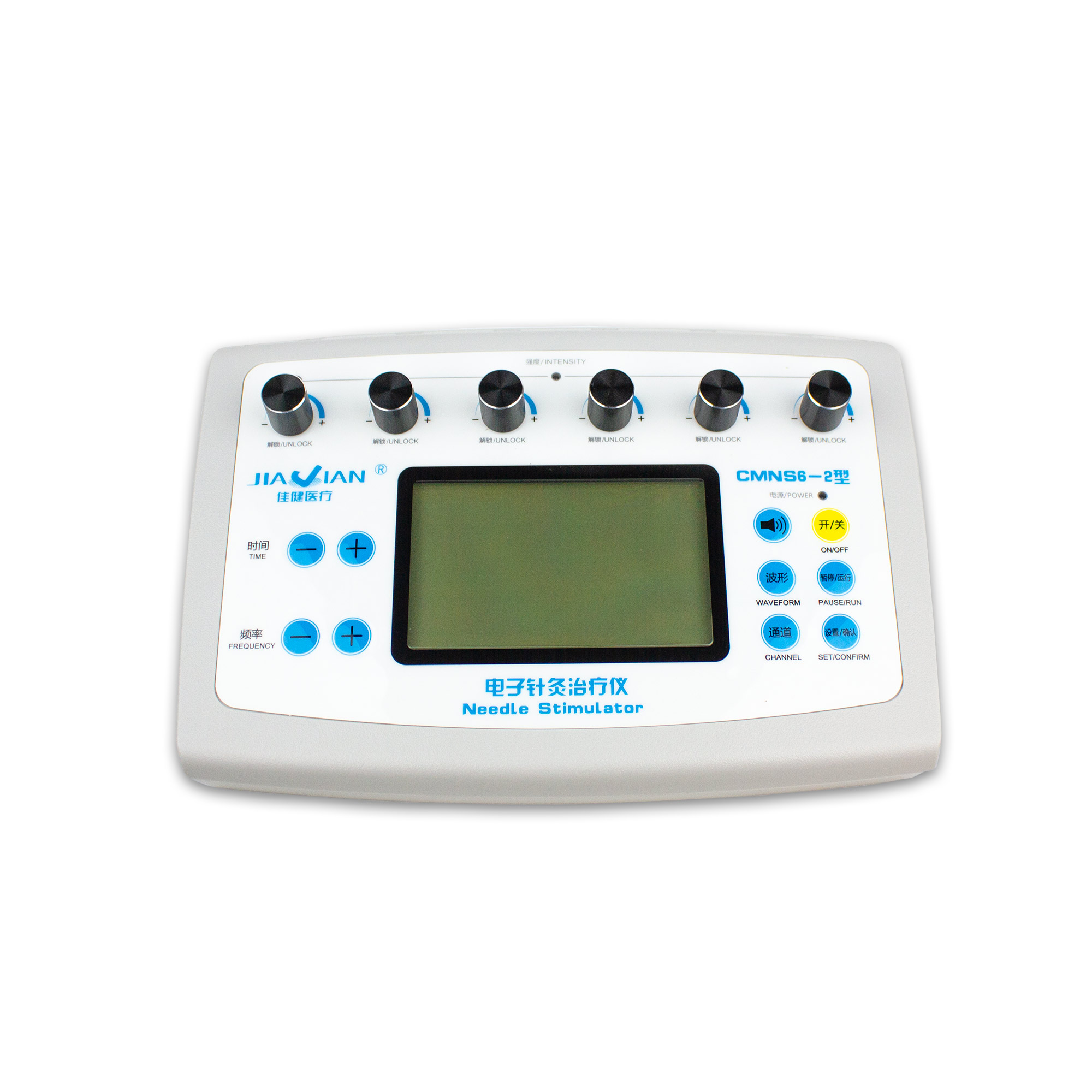

CMNS6-2 Needle Stimulator (6 CHNL)


In stock


In stock

Product Overview

This 6 channel needle stimulator will be your new clinic work horse! You can choose to stimulate up to 12 needles at the same time. In blocks of 3 (2 channels each block), you can run three different frequencies on each group of needles. The range of frequencies varies 1 to 100 hz with the option of choosing continuous, intermittent and alternating (dilatational) frequencies.

This unit combines modern technology with traditional acupuncture meridian theory, thus providing practitioners with an easy-operated and portable device.

As a bonus, this unit can also be switched to operate as a TENS unit with tens pads with a simple change in settings. The unit comes with both TENS pads and electrodes with alligator clips for acupuncture needle stimulation. You can run the unit on either battery or the main building power supply.

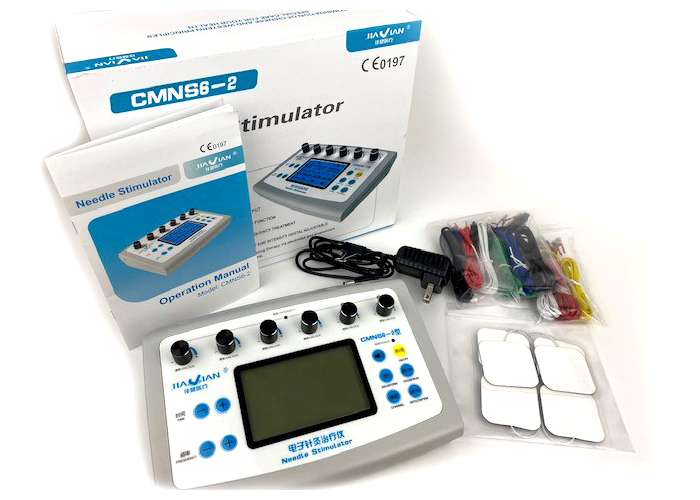

Each unit comes with:

6 x  Alligator leads, 3 x 2.00 mm TENS leads and 6 x TENS Self-Adhesive Pads (50 x 50 mm) and a manual

Technical Parameters

Output waveform is asymmetric double triangle tip wave and output base wave is rectangular wave.

Output frequency: 1 HZ -100HZ adjustable( deviation±15%)

Impulse width: 0.175ms(deviation±30%)

Output voltage peak value: high level, 50 V ( allowable deviation ±30% 500 Ω rated load), only for skin electrode low level, 20 V (allowable deviation ±30% 250 Ω rated load),only for filiform-needle electrode

Output impulse channel: 6 channels

The device should have no DC component output

Effective values of max output current at 1000Ωand 250Ω load is not more than 10mA(r.m.s)

Timing : 1-99min(deviation±10%)

Power source: Alkaline battery R14/UM2×6,DC9V

or specific power adapter: model ABT005090. Input:220V~,50Hz, output: DC9V

500mA (recommend to use adapter complying with GB 9706.1)

Output waveform

a) continuous wave: 1Hz~100Hz adjustable

b) intermittent wave: frequency 1 HZ -100HZ adjustable. Interrupted wave time 5s±2s, continuous wave time 15±3s.

c) dilatational wave: frequency 1Hz~20Hz adjustable; dense wave 5Hz~100Hz adjustable; disperse time 5s±2s; dense time 10s±3s.

Skin electrode: 50mm×50mm,deviation±10%; electrical impedance170Ω,deviation±10%

Volume: 238 mm×184mm×75mm

Weight: approx. 657g

Note: 1) Frequency, impulse width and intensity vary with different mode.

2) Different impedance ( for skin electrode 500Ω,for Filiform-needle electrode

250Ω) has impact

Warranty: CMNS6-2 Needle Stimulator has a one year warranty, valid from the date of purchase. The warranty is valid on the unit only, and does not include accessories.

Watch a 15 minute video on the 6 Channel Acupuncture Stimulator

SKU: E360 Category:
Weight 2.5000 kg
Dimensions 295 × 245 × 125 mm
