Introducing the new ITO ES-130. This model replaces the popular IC-1107. This new model is designed and calibrated to meet all essential safety and regulatory industry standards.

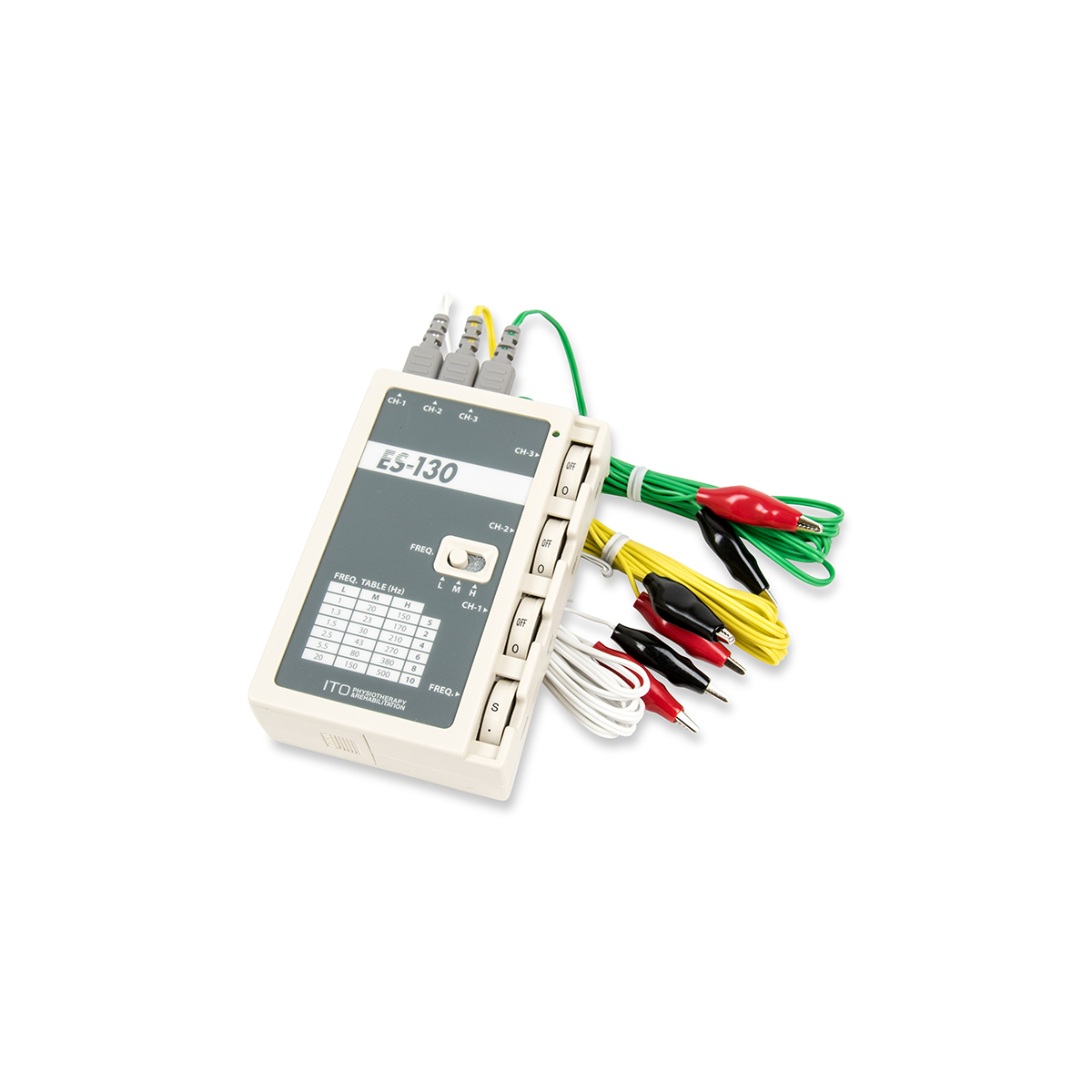

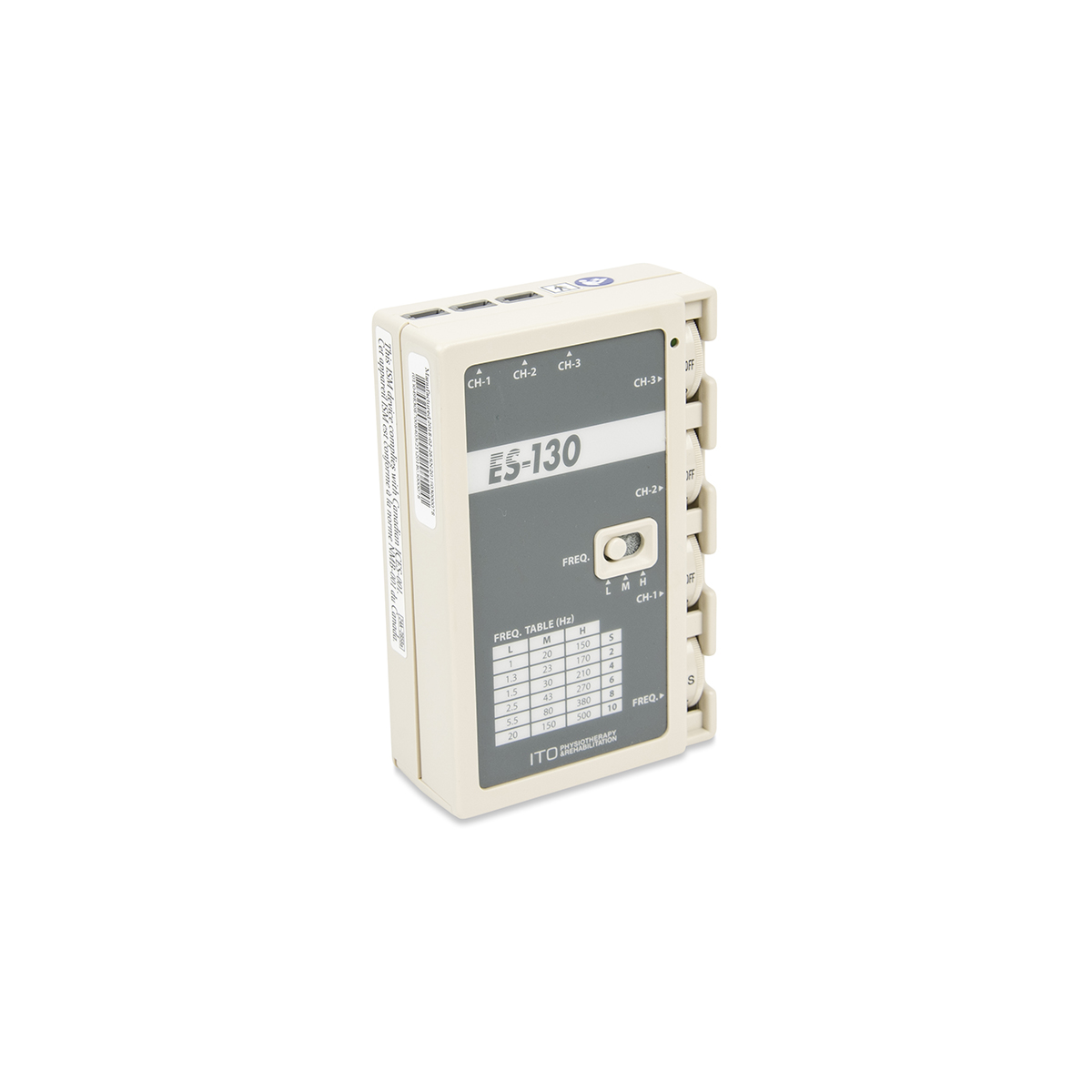

With its fresh new look, the ES-130 is a compact, lightweight, sturdy, palmsize, high-quality Japanese electro-therapy device. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light. The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle. The pocket portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.

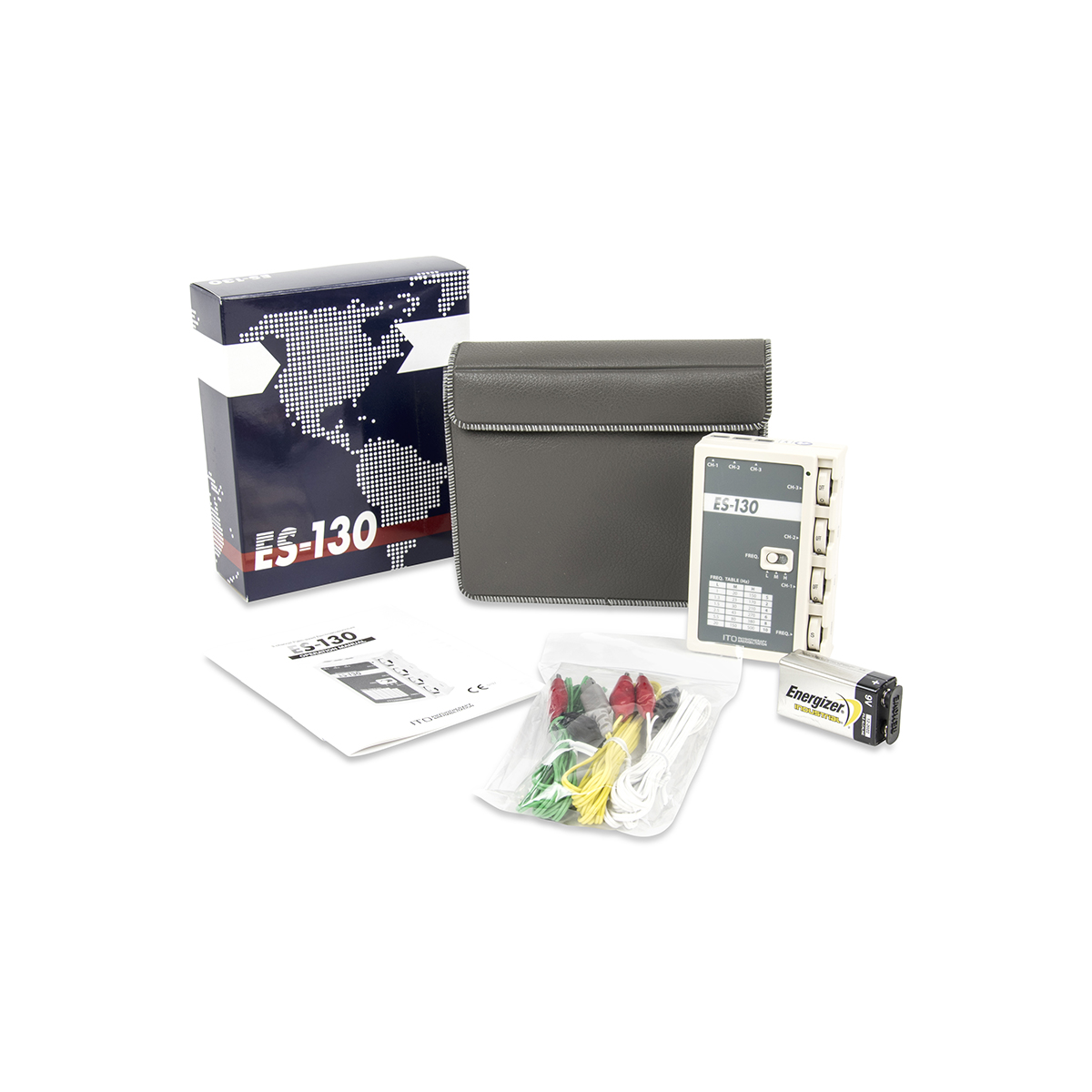

Accessories include 3 sets of new CE wire leads with rectangular CE jack, carrying case, and instructions. Does not include battery.
Converter Jack (sold separately) converts rectangular CE jack to 3.5mm jack for use with all 3.5mm jack accessories.
Note: When using 9-volt Duracell Batteries with the ES-130, a thin shim (or paper) must be placed at the bottom of the battery to make proper contact (ie, Duracell are shorter in length). Also, in order to use the built-in battery check (located on the back side of unit), power must be turned on.
This limited warranty covers any defective materials or workmanship as follows:
Within the one-year warranty period from the date of original purchase, product returned to Eastern Currents Ltd, and proven to be defective upon inspection, will be repaired. There will be no charge for parts and servicing. Repairs after the warranty period will be made and charged to the customers on the basis of rates which are available on request. Customer will be responsible for any shipping charges and insurance, if any, for the equipment sent to/returned from Eastern Currents Ltd.
This limited warranty covers all defects in normal use, and does not apply in the following cases:
- Loss or damage due to abuse, misuse, neglect, alteration, accident or electrical current fluctuation.
- Use of parts or supplies (other than those distributed by Eastern Currents Ltd) which damage the equipment or cause abnormal frequent service call.
- Eastern Currents Ltd will not be liable for loss of revenue or profits, failure to realize savings or other benefits, or for any other special, incidental or consequential damages.
- This warranty does not cover any consumable part, which has a lifetime.
|Specifications:||500 ohm test load|
|Output channels||3 independent intensity channels|
|Frequency L – 1 to 20 Hz
(adjusted with M – 20 to 150 Hz
fine frequency dial)
|L – 1 to 20 Hz|
|M – 20 to 150 Hz|
|H – 150 to 500 Hz|
|Low volts & current||0 to 10 volts, 0 to 20 milliamps|
|Hi volts & current||0 to 20 volts, 0 to 40 milliamps|
|Voltage, max||30 volts (100 kohm load)|
|Pulse width||100 microseconds (µS)|
|Pulse shape||asymmetric biphasic square wave|
|Power source||one 9 volt battery (not included, Energizer brand recommended)|
|Freq indicator||flashing red light|
|Size, wt, color||4.5″ x 3.2″ x 1.2″, 0.3 lbs, gray|
