Pointoselect Digital DT

Availability:

In stock


This item is not available for retail sale. You must be logged in with your approved practitioner or student account to view prices and purchase this item.

Click here to log in.




The advancement in electric point detectors.

Point finder with automatic and manual point search and integrated electrostimulator.

Please note: this item is only for sale within Canada.

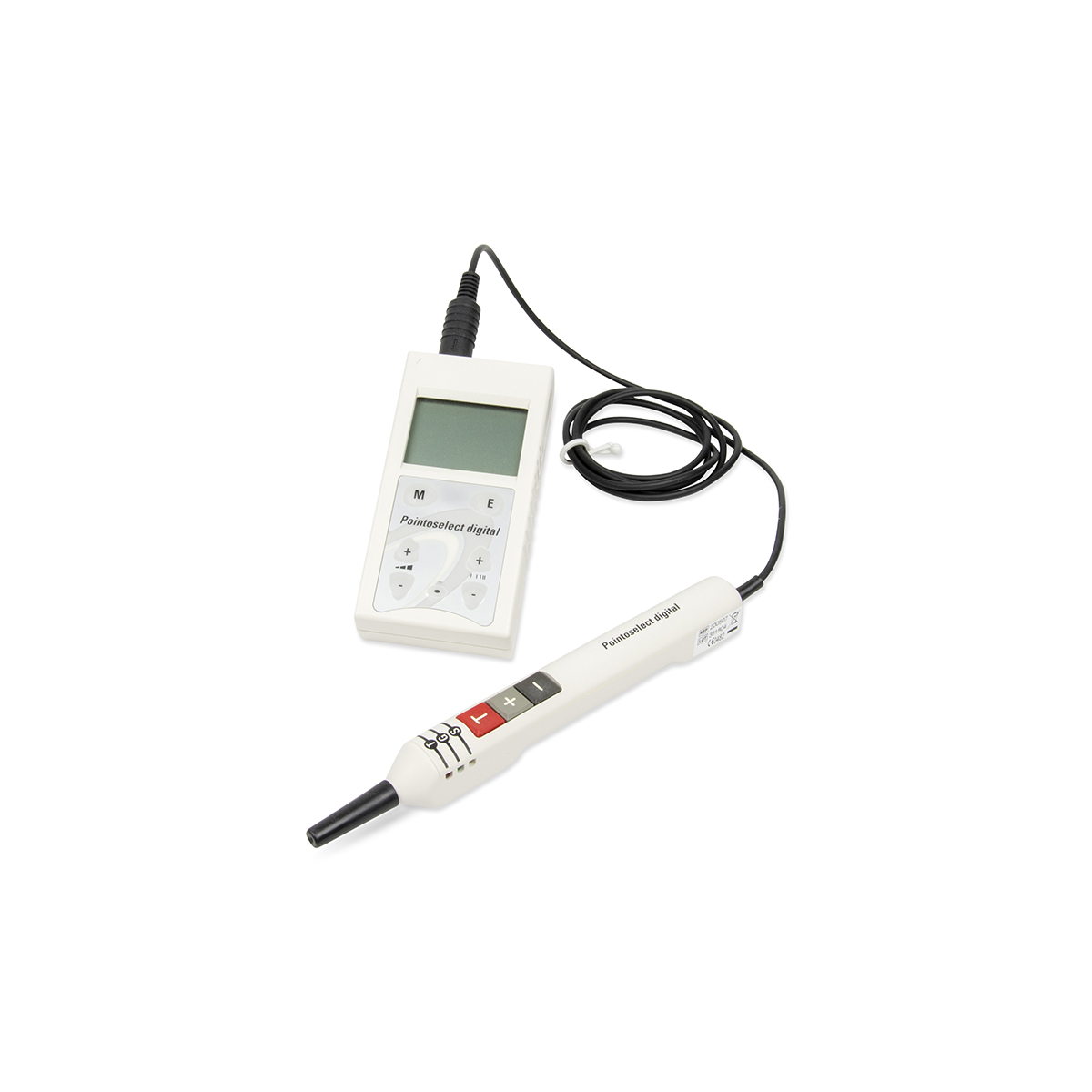

The Pointoselect digital has been designed to locate, assess, and treat body and auricular acupuncture points on the human body. The unit uses digital technology and highly sensitive sensors that have been proven to be extremely accurate.

The Pointoselect Digital has three modes:

  • one for automatic point location,
  • a second for manual point location and
  • a third mode for stimulation once the point has been located.

As an auricular point detector, this unit is highly accurate and is programmed with many options for both the beginner and experienced auricular therapist.

The probe emits green LED for the gold points and yellow LED for the silver points. Also the Pointoselect accompanies the detection of a gold or silver point with a distinguishable signal tone for each.

In the stimulation mode the practitioner can choose different frequencies following protocols established by Dr. Nogier and Dr. Bahr. An option exists for the practitioner to set their own frequencies, independent of the preset ones.

The unit can also be switched to a body mode for detecting and stimulating acupuncture points on the body.

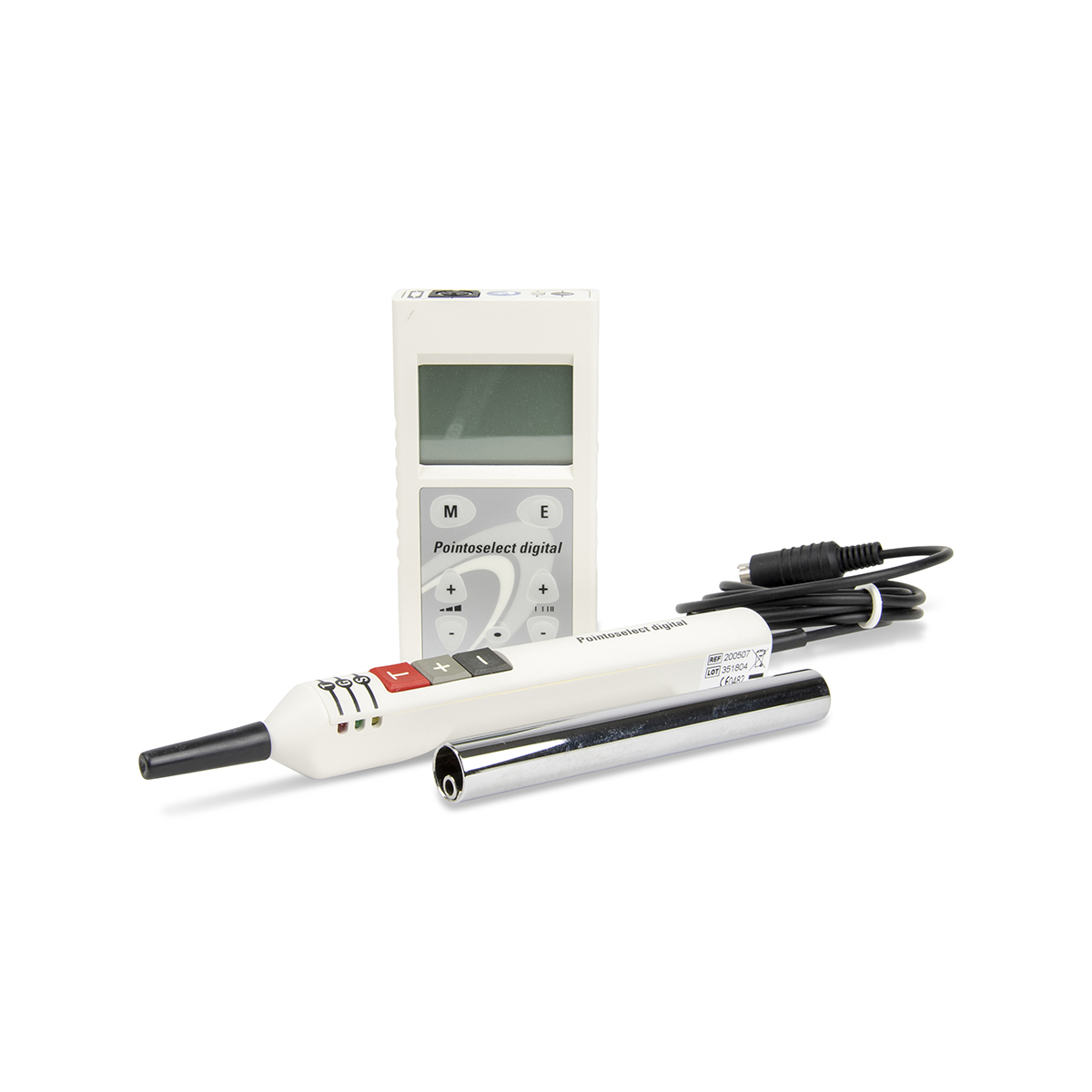

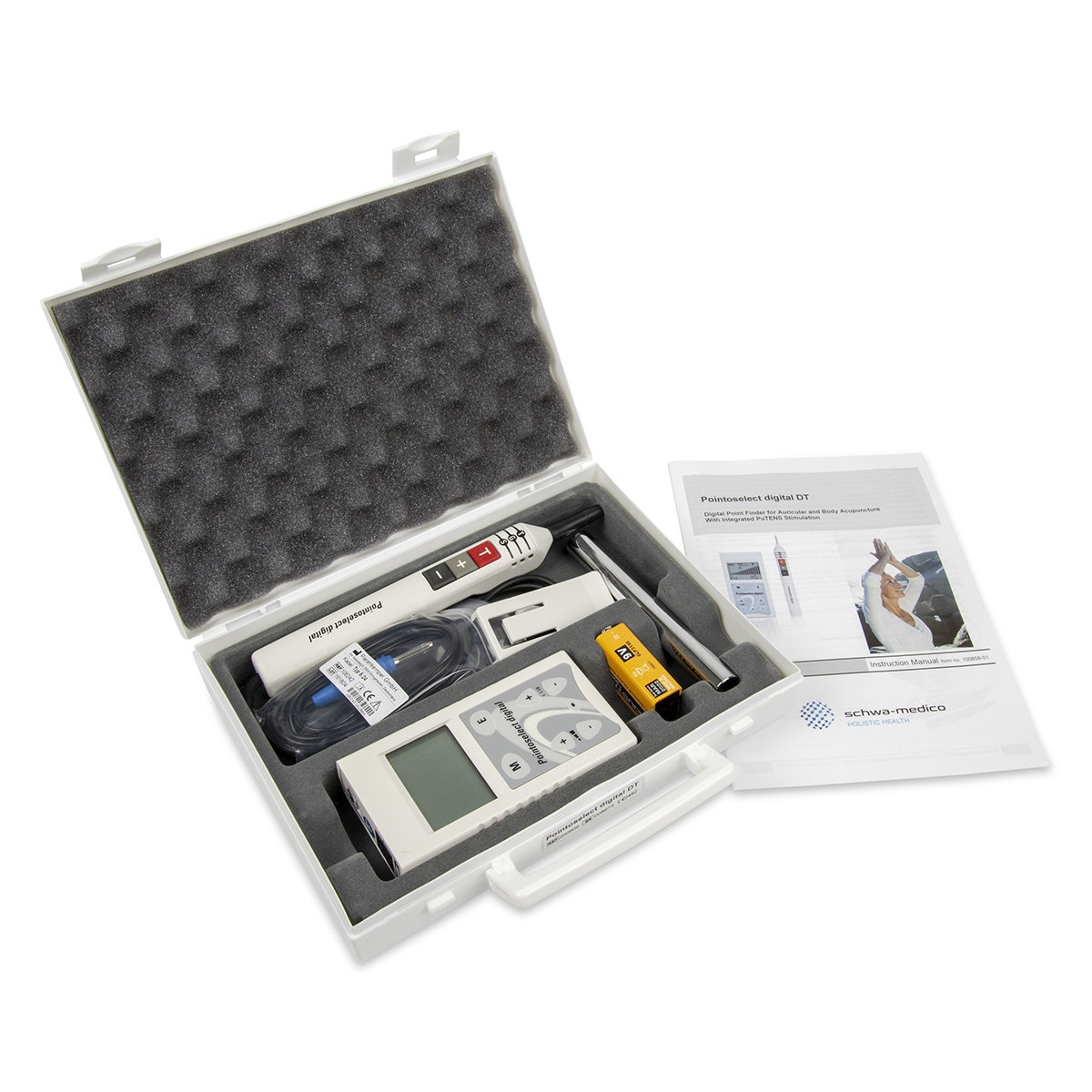

The device comes with the following items:

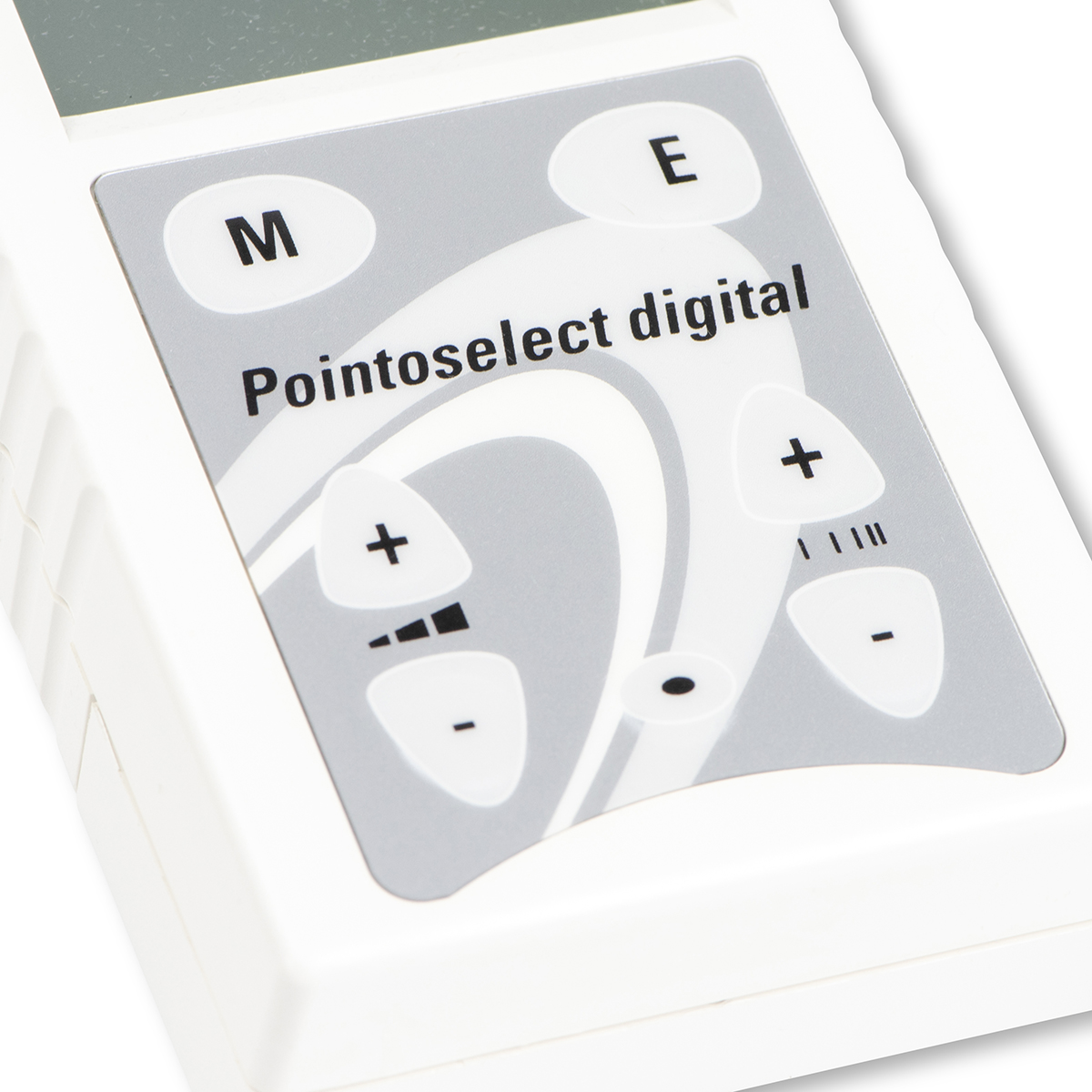

  • Digital Pointsearch detector with LCD display

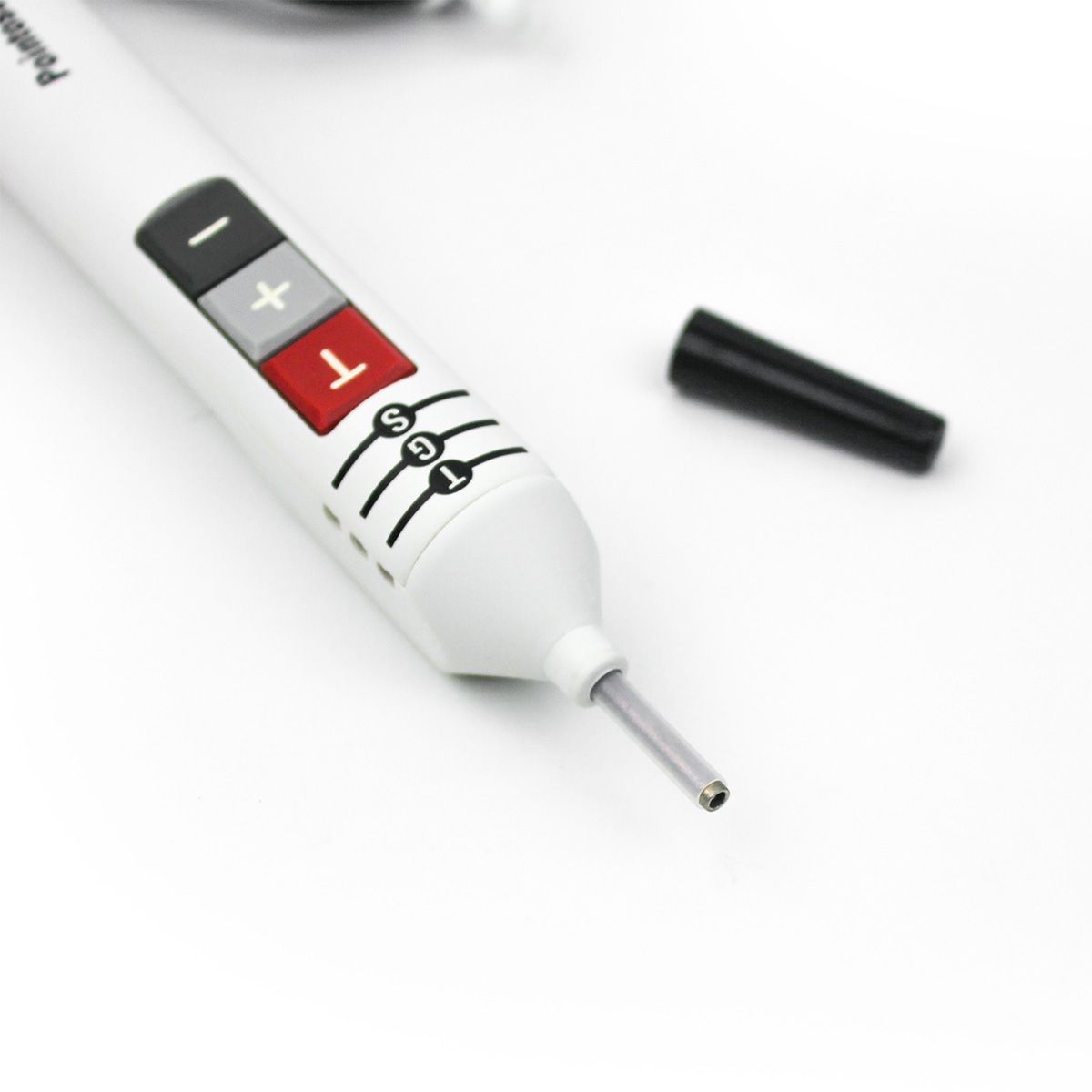

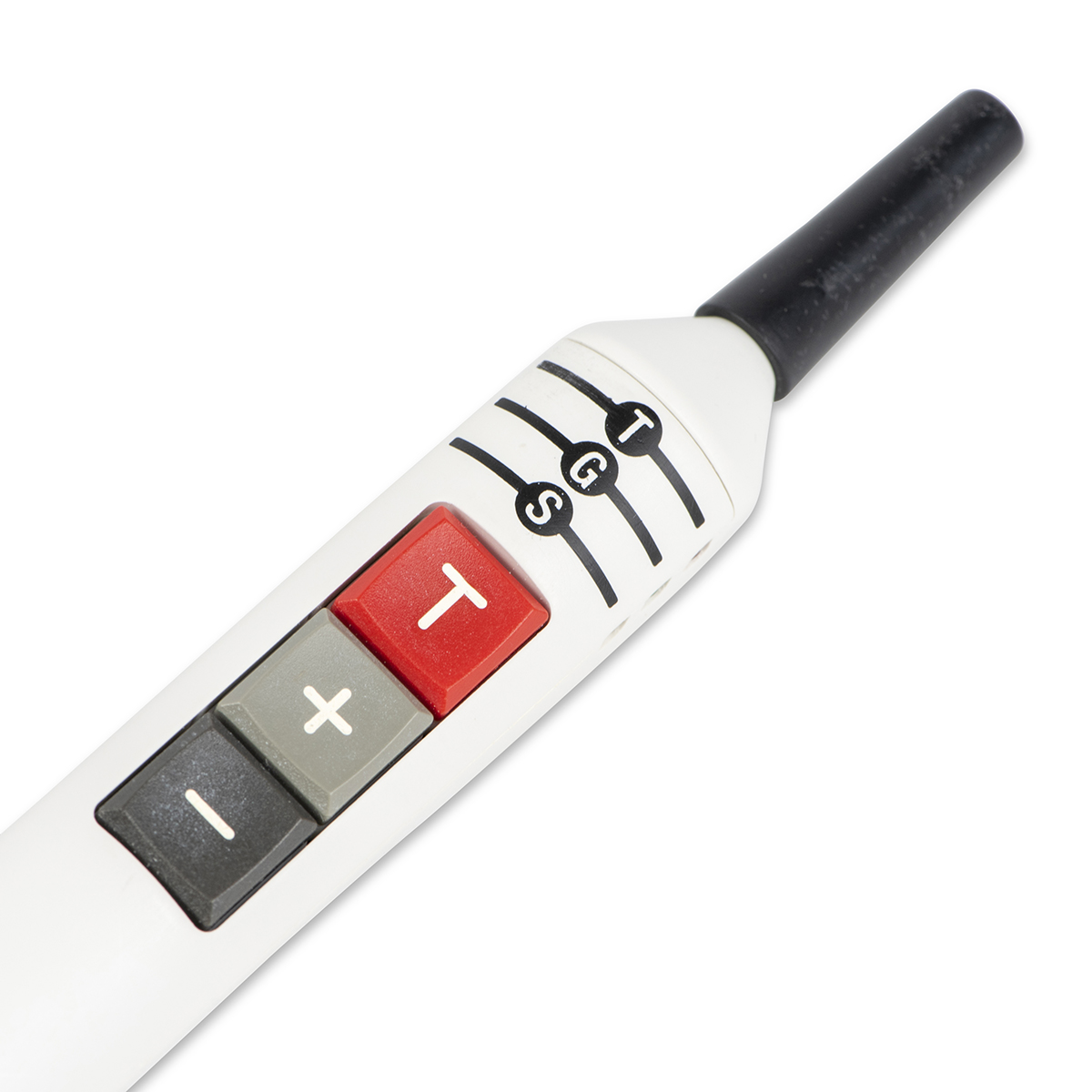

  • Hand probe with a stimulation function and LEDs for silver and gold point recognition
  • Patient-held hand probe

Specifications:

  • Power supply: 9V Battery
  • Dimensions: approx 115 x 60 x 30mm
  • Weight: approx 123g without acccessories

Point Finder:
Current consumption: approx 17mA (without signal tone), approx 30mA (with signal tone)

Stimulator:
Current consumption: approx 28mA (under 20 kΩ load at 128 Hz and 120 µs)
Output voltage: 200V (under 20 kΩ load)
Frequency range: 2-128 Hz
Pulse width: 60-120 µs

Please note: this item is only for sale within Canada.

WARRANTY POLICY

This limited warranty covers any defective materials or workmanship as follows:
Within the one-year warranty period from the date of original purchase, product returned to Eastern Currents, and proven to be defective upon inspection, will be repaired. There will be no charge for parts and servicing. Repairs after the warranty period will be made and charged to the customers on the basis of rates which are available on request.
Customer will be responsible for any shipping charges and insurance, if any, for the equipment sent to/returned from Eastern Currents.

This limited warranty covers all defects in normal use, and does not apply in the following cases:

• Loss or damage due to abuse, misuse, neglect, alteration, accident or electrical current fluctuation.

• Use of parts or supplies (other than those distributed by Eastern Currents Supplies) which damage the equipment or cause abnormal frequent service call.

Eastern Currents will not be liable for loss of revenue or profits, failure to realize savings or other benefits, or for any other special, incidental or consequential damages.

This warranty does not cover any consumable part, which has a lifetime.

Weight 0.6200 kg
Dimensions 225 × 172 × 50 mm
